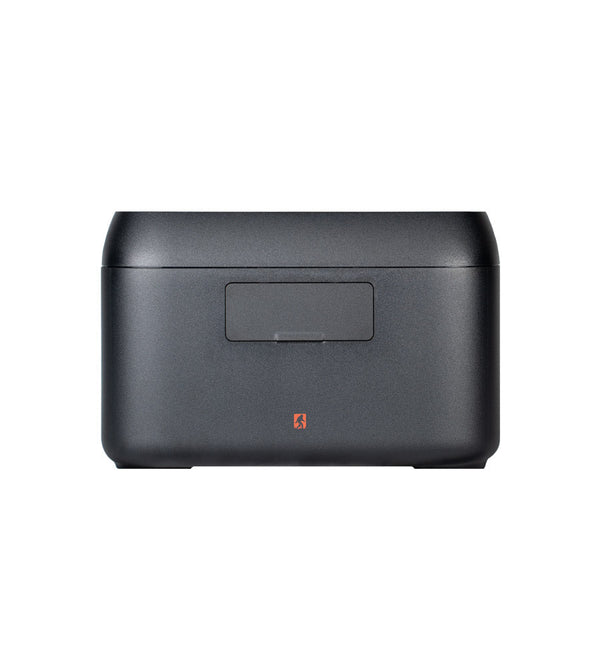

Sasquatch 600W Portable Power Station: SAS-600W

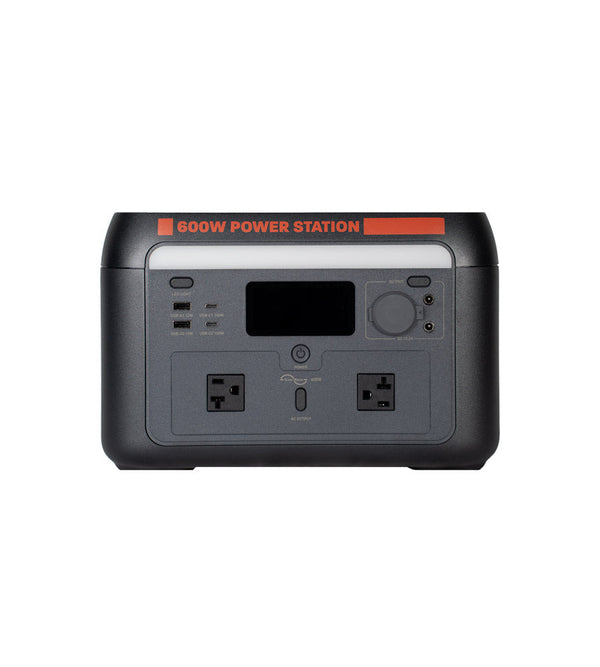

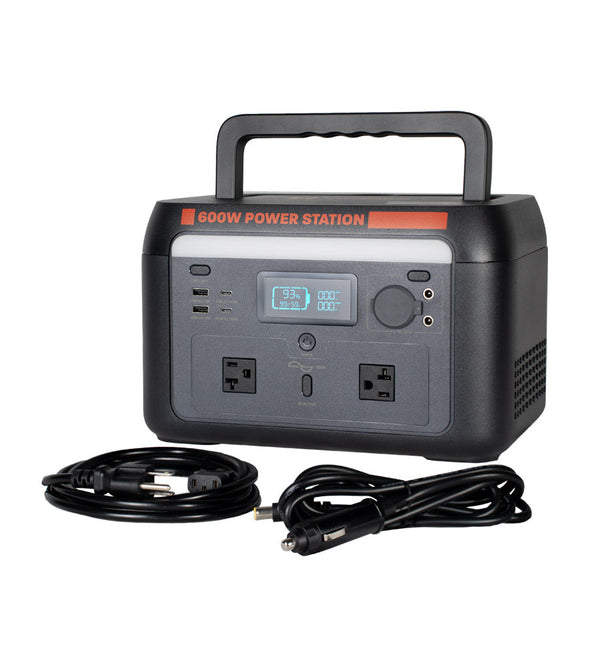

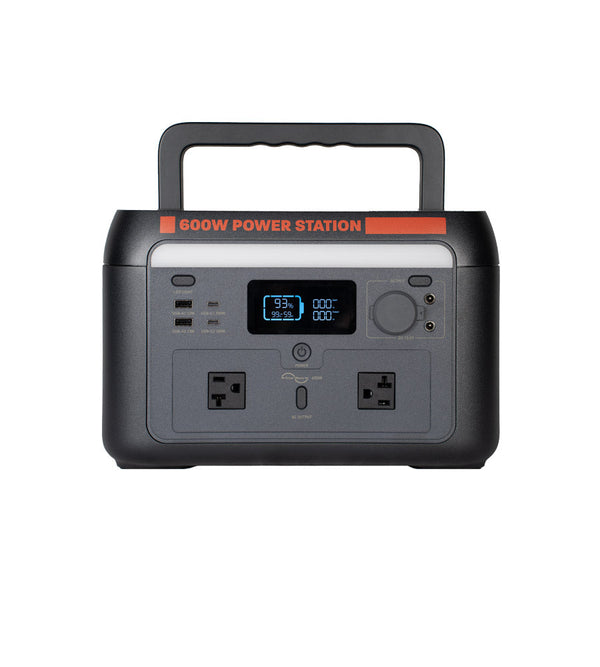

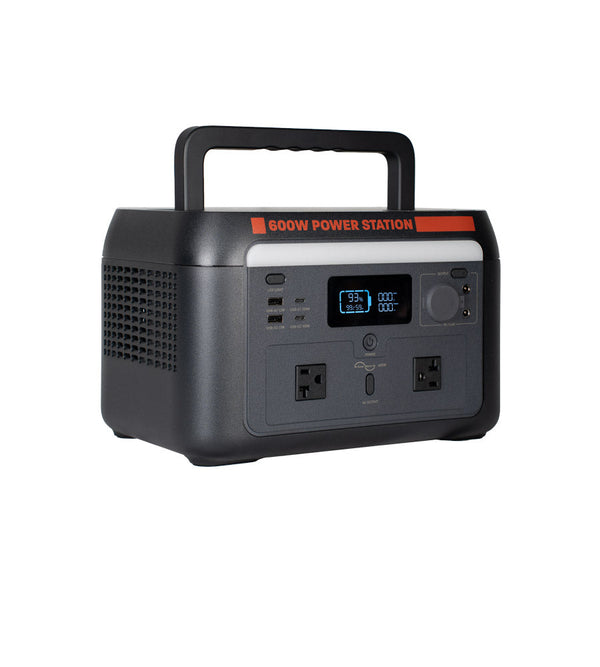

The Sasquatch 600W Power Station holds a cell type of lithium iron phosphate battery with a life expectancy of 3000 cycles and a capacity of 512Wh, 25.6V, and 20Ah. The power station has an LCD screen that displays the battery percentage, remaining charge time, temperature warnings, input and out power, fan status, and PV Charge. It also comes with a selection of outputs for on-the-go necessities including: a car charge, two AC outputs, and DC outputs, two USB-A output ports, and two USB-C output ports.

Features

• Outputs: AC Socket, USB-A1/A2, USB-C1/C2, car charger, DC5521
• Power station provides over and low temperature protection, over discharge protection, overload protection, short circuit protection, over current protection
• Wi-Fi and Bluetooth connections
• LED screen with 4 brightness settings
• Automatic shut-off after 1-hour without any load on the AC output
• Fast charging mode allows for AC to be fully charged in 90 minutes
• Solar and car charge input available for PV and car charging
• Constant power suitable for heater and motor
• Emergency Backup Power function for continuous use
• Error messages indicated by numbers to approach with the correct solution
• APP available for download to track usage and battery percentage

Instruction Manual (PDF)

GENERAL

• Weight: 15 lbs (7 kg)
• Dimensions: 11.8" x 8.9" x 7.6" (L x W x H)
• Battery Capacity: 512Wh (20Ah, 25.6V)
• Battery Type: LiFePO4 (lithium iron phosphate)
• Wi-Fi: Supported
• Life Cycles: 3000+

OUTPUT OPTIONS

• AC Outlets (Inverter Mode): 2x outlets, 600W total (1000W peak), 100–120V, 60Hz
• AC Outlet (Bypass Mode): 600W Max while plugged into wall power
• USB-A Ports (x2): 5V, 2.4A (12W Max)
• USB-C Ports (x2): 5V/9V/12V/15V at 3A, 20V at 5A – up to 100W Max
• Car Port (Cigarette Lighter): 12.6V, 10A (126W Max)
• DC5521 Ports (x2): 12.6V, 3A

Inverter Mode = AC power comes from the internal battery
Bypass Mode = AC power passes directly from wall power

INPUT OPTIONS (Recharging the Unit)

• AC Wall Charging: Up to 600W (from 120V outlet)

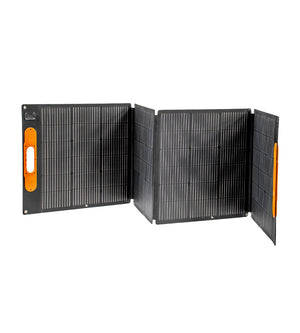

• Solar Charging (PV): Up to 200W, 12–20V, 10A
• Car Charging: 12V battery supported, 8A default
• Combined Charging (AC + Solar): Up to 600W Max

Note: Car port and DC5521 ports share a 126W total output limit.
